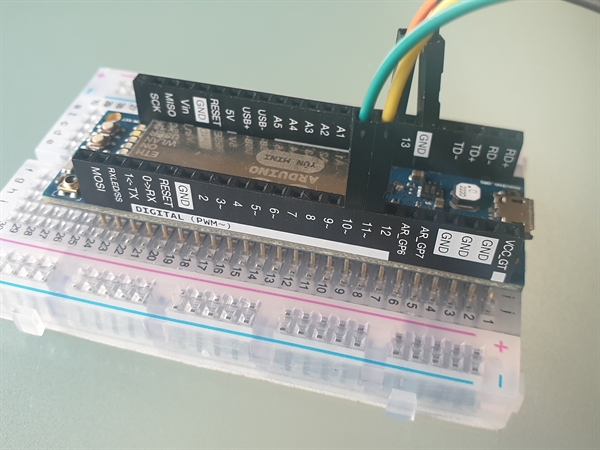

Arduino Yun Mini + Adafruit Ultimate GPS

   iconSerial.png    volts33.png

Excel

Excel  GPS checksum example


Arduino Yun Mini + Adafruit Ultimate GPS
Arduino Yun Mini + Adafruit Ultimate GPS
Arduino Yun Mini + Adafruit Ultimate GPS
Arduino Yun Mini + Adafruit Ultimate GPS
Arduino Yun Mini + Adafruit Ultimate GPS
Arduino Yun Mini + Adafruit Ultimate GPS

Sketch

// Arduino YUN mini connected to a Adafruit Ultimate GPS
// Copyright (C) 2017 https://www.roboticboat.uk
// d7ea1aa3-5c61-4c79-b070-bd7fb060b852
//
// This program is free software: you can redistribute it and/or modify
// it under the terms of the GNU General Public License as published by
// the Free Software Foundation, either version 3 of the License, or
// (at your option) any later version.
//
// This program is distributed in the hope that it will be useful,
// but WITHOUT ANY WARRANTY; without even the implied warranty of
// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
// GNU General Public License for more details.
//
// You should have received a copy of the GNU General Public License
// along with this program. If not, see <https://www.gnu.org/licenses/>.
// These Terms shall be governed and construed in accordance with the laws of
// England and Wales, without regard to its conflict of law provisions.
#include <Bridge.h>
#include <YunServer.h>
#include <YunClient.h>
#include <SoftwareSerial.h>
// gpsSerial(receive from GPS,transmit to the GPS module)
SoftwareSerial gpsSerial(10,11);
// The one global server object listening for incoming connections.
#define PORT 23
YunServer Server(PORT);
// Define an array of simultaneous clients
#define NUM_CLIENTS 1
YunClient clients[NUM_CLIENTS];
// Global variables
String inputSerial1 = ""; // a string to hold incoming data
String inputStore = "";
boolean IsReadySerial1 = false; // whether the string is complete
void setup()
{
Bridge.begin();
Server.noListenOnLocalhost(); // Listen for external connections
Server.begin();
//Receive from the GPS device (the NMEA sentences) - Green wire
pinMode(10, INPUT);
//Transmit to the GPS device - Yellow wire
pinMode(11, OUTPUT);
// Keep the User informed
Serial.begin(9600);
Serial.println("Initializing GPS");
gpsSerial.begin(9600);
delay(100);
// The Adafruit GPS flashes every second while search. Once every 15 seconds once a fix is found
//
// $GPGGA,094728.000,5126.4900,N,00016.0200,E,2,08,1.30,19.4,M,47.0,M,0000,0000*52
// $GPGSA,A,3,05,20,13,24,15,30,28,17,,,,,2.08,1.30,1.63*06
// $GPRMC,094728.000,A,5126.4900,N,00016.0200,E,0.01,259.87,310318,,,D*6B
// $GPVTG,259.87,T,,M,0.01,N,0.02,K,D*3A
// $GPGGA,094729.000,5126.4900,N,00016.0200,E,2,08,1.30,19.4,M,47.0,M,0000,0000*53
// $GPGSA,A,3,05,20,13,24,15,30,28,17,,,,,2.08,1.30,1.63*06
// $GPRMC,094729.000,A,5126.4900,N,00016.0200,E,0.00,264.45,310318,,,D*6B
// $GPVTG,264.45,T,,M,0.00,N,0.01,K,D*38
//gpsSerial.println("$PMTK314,0,1,0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0*28");
gpsSerial.println("$PMTK314,0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0*27");
delay(100);
// Reserve 200 bytes for the inputSerial1 string
inputSerial1.reserve(200);
}
void loop()
{
while (gpsSerial.available())
{
// Read the new byte:
char nextChar = (char)gpsSerial.read();
// Append to the inputSerial1 string
inputSerial1 += nextChar;
// If a newline, then set flag so that the main loop will process the string
if (nextChar == '\n') {
inputStore = inputSerial1;
inputSerial1 = "";
}
}
// Process every client
for (byte i = 0; i<NUM_CLIENTS; i++)
{
if (clients[i].connected()) // Is it connected?
process(i); // It's connected, process the client
else
{
if ((bool)clients[i]) // Not connected. Is the client open?
{
// The client is not connected, but is currently open.
Serial.print("Lost connection to client ");
Serial.println(i);
clients[i].stop(); // Close and clean up the old connection
}
// At this point, the client is not connected, and is closed.
clients[i] = Server.accept(); // Try to establish a connection.
if (clients[i].connected()) // Was a connection made?
{
Serial.println("New connection on client ");
//Serial.println(i);
clients[i].print(inputStore);
clients[i].stop();
}
}
}
}
void process(byte index)
{
// Read and echo all available data from the client.
String str = "";
// Read all available data, append to string
while (clients[index].available())
str = str + (char)clients[index].read();
// Trim off non-printable characters.
str.trim();
// Got something? If so, print out what was recevied, send client ID back to other side
if (str.length() > 0)
{
Serial.print("Received from client ");
Serial.print(index);
Serial.println(": received \"" + str + "\"");
clients[index].print("Client ");
clients[index].println(index);
}
}
