Raspberry Pi Pico W with GPS raw data
Example code of connecting the Raspberry Pi Pico W to a GPS module.
Connections
Description | Colour | Pico W | GPS module |
---|---|---|---|
Power 3v | Orange | pin36 3V3(OUT) | 3.3v |
Ground | Black | pin3 GND | GND |
Pico W Transmit | Yellow | pin6 GP4 UART1_TX | GPS RX pin |
Pico W Receive | Green | pin7 GP5 UART1_RX | GPS TX pin |
Video
Please click thumbnail image to start the video
![Video on Raspberry Pi Pico W with GPS raw data](20230227_162431_videothumb.jpg)
![iconSerial.png](iconSerial.png)
![volts33.png](volts33.png)

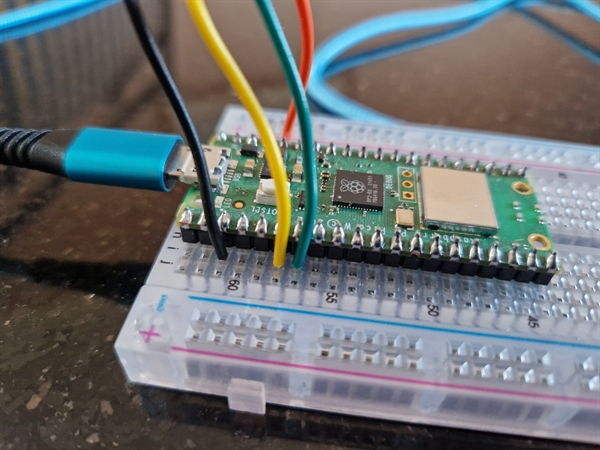

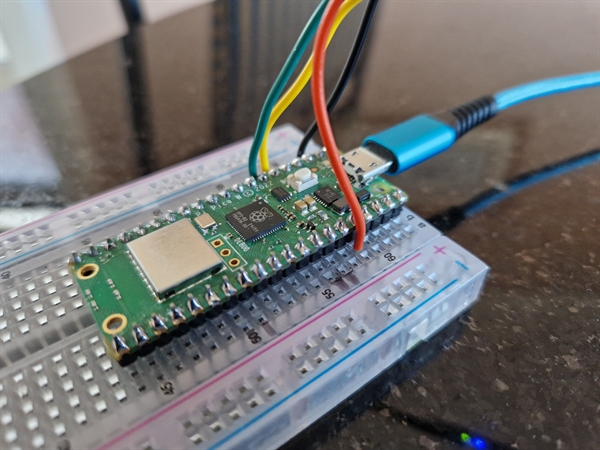

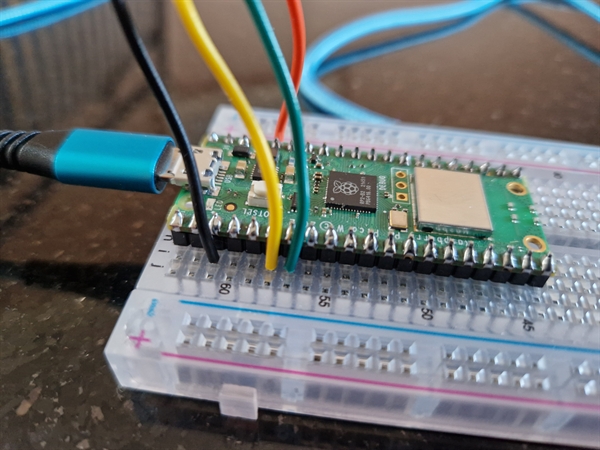

![Raspberry Pi Pico W with GPS raw data](20230227_162402/20230227_162402_600.jpg)
![Raspberry Pi Pico W with GPS raw data](20230227_162410/20230227_162410_600.jpg)
![Raspberry Pi Pico W with GPS raw data](20230227_162413/20230227_162413_600.jpg)
