Arduino Due + PMB-648 GPS

Video

Please click thumbnail image to start the video

Video on Arduino Due + PMB-648 GPS    iconSerial.png    volts33.png

Excel

Excel  GPS checksum example

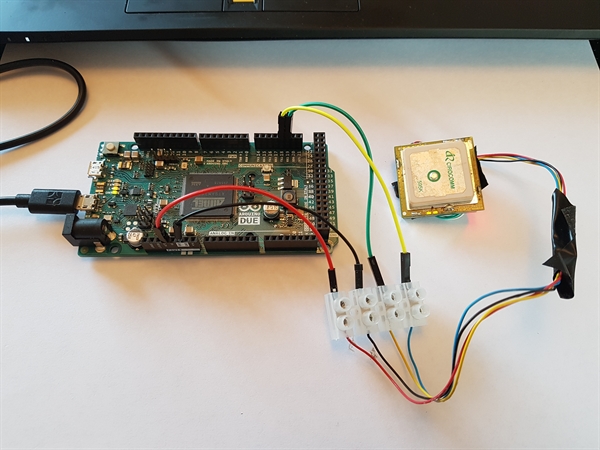

Arduino Due + PMB-648 GPS

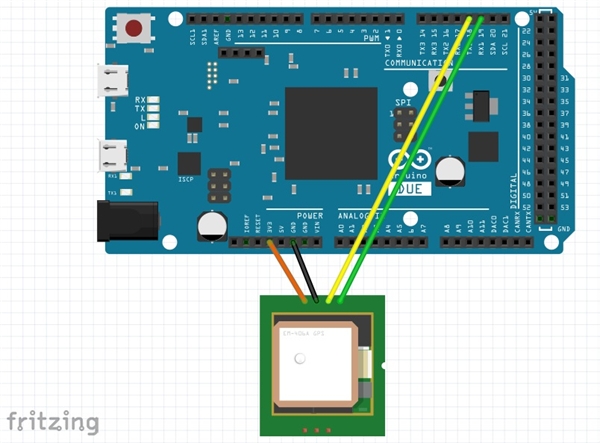

Arduino Due + PMB-648 GPS
Arduino Due + PMB-648 GPS

Sketch

// Arduino DUE and the PMB 648
// Copyright (C) 2021 https://www.roboticboat.uk
// fc2c01fd-cd04-40f2-a3da-68d56f165c93
//
// This program is free software: you can redistribute it and/or modify
// it under the terms of the GNU General Public License as published by
// the Free Software Foundation, either version 3 of the License, or
// (at your option) any later version.
//
// This program is distributed in the hope that it will be useful,
// but WITHOUT ANY WARRANTY; without even the implied warranty of
// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
// GNU General Public License for more details.
//
// You should have received a copy of the GNU General Public License
// along with this program. If not, see <https://www.gnu.org/licenses/>.
// These Terms shall be governed and construed in accordance with the laws of
// England and Wales, without regard to its conflict of law provisions.
// Global variables
String inputSerial1 = ""; // a string to hold incoming data
boolean IsReadySerial1 = false; // whether the string is complete
void setup()
{
Serial.println("Initializing GPS");
Serial1.begin(4800);
// Set the GPS in walk mode
SetGPSWalkMode();
// Reserve 200 bytes for the inputSerial1 string
inputSerial1.reserve(200);
// Keep the User informed
Serial.begin(9600);
}
void loop()
{
// Does Seria11 have a new message?
if (IsReadySerial1)
{
// Print new message on a new line.
// The last character of the inputSerial1 is a new line
Serial.print(inputSerial1);
// clear the string:
inputSerial1 = "";
IsReadySerial1 = false;
}
}
void serialEvent1()
{
//This event is called when Serial1 receives new bytes
while (Serial1.available() && IsReadySerial1 == false)
{
// Read the new byte:
char nextChar = (char)Serial1.read();
// Append to the inputSerial1 string
inputSerial1 += nextChar;
// If a newline, then set flag so that the main loop will process the string
if (nextChar == '\n') {
IsReadySerial1 = true;
}
}
}
void SetGPSWalkMode()
{
//The GPS is by default set up as Static Navigation
//which means the lat/lon will not change unless moving say 50 meters
//The script below turns the GPS to pedestrian/walk mode but need to go via
//SiRF binary mode to set the parameters. The GPS will of course must have
//the SiRF chipset.
// Switch from NMEA to SiRF binary - REQUIRES THE SiRF chip!
// $PSRF100 - Message ID
// 0 = SiRF binary (1=NMEA)
// Band = 4800
// DataBits = 8
// StopBits = 1
// Parity = 0
// Checksum *0C
Serial1.println("$PSRF100,0,4800,8,1,0*0F"); //Sets it to SiRF Binary Mode
delay(2000);
// Static Navigation (Message ID 143) ------------------
// Allows the user to enable or disable static navigation to the receiver
// Static model is meant to be used in cars and thus can be turned off
Serial1.write((byte)0xA0); // Start Sequence
Serial1.write((byte)0xA2);
Serial1.write((byte)0x00); // Payload length
Serial1.write((byte)0x02); // dec2hex(2 bytes)=0x02
Serial1.write((byte)0x8F); // 1 Message ID = 143
Serial1.write((byte)0x00); // 2 Disable = 0 (Enable = 1)
Serial1.write((byte)0x00); // Message Checksum
Serial1.write((byte)0x8F); // 0x8F+0x00 (the payload)
Serial1.write((byte)0xB0); // End Sequence
Serial1.write((byte)0xB3);
delay(1000);
// Switch to NMEA Protocol (Message ID 129) ------------
Serial1.write((byte)0xA0); // Start Sequence
Serial1.write((byte)0xA2);
Serial1.write((byte)0x00); // Payload length
Serial1.write((byte)0x18); // dec2hex(24 bytes)=0x18
delay(100);
Serial1.write((byte)0x81); // byte 1 Message ID = 129
Serial1.write((byte)0x02); // byte 2 Mode
Serial1.write((byte)0x01); // byte 3 GGA message (ON) 1 second
Serial1.write((byte)0x01); // byte 4 Checksum
Serial1.write((byte)0x00); // byte 5 GLL message (OFF) 0 second
Serial1.write((byte)0x01); // byte 6 Checksum
Serial1.write((byte)0x00); // byte 7 GSA message (OFF) 0 second
Serial1.write((byte)0x01); // byte 8 Checksum
Serial1.write((byte)0x00); // byte 9 GSV message (OFF) 0 second
Serial1.write((byte)0x01); // byte 10 Checksum
Serial1.write((byte)0x01); // byte 11 RMC message (ON) 1 second
Serial1.write((byte)0x01); // byte 12 Checksum
delay(100);
Serial1.write((byte)0x00); // byte 13 VTG message (OFF) 0 second
Serial1.write((byte)0x01); // byte 14 Checksum
Serial1.write((byte)0x00); // byte 15 MSS message (OFF) 0 second
Serial1.write((byte)0x01); // byte 16 Checksum
Serial1.write((byte)0x00); // byte 17 EPE message
Serial1.write((byte)0x01); // byte 18 Checksum
Serial1.write((byte)0x00); // byte 19 ZDA message
Serial1.write((byte)0x01); // byte 20 Checksum
Serial1.write((byte)0x00); // byte 21 Unused field
Serial1.write((byte)0x01); // byte 22 Unused field
Serial1.write((byte)0x12); // byte 23 Bit rate dec2hex(4800)=12C0
Serial1.write((byte)0xC0); // byte 24
delay(100);
Serial1.write((byte)0x01); // Message Checksum
Serial1.write((byte)0x61); // 0x81+0x02+0x01+0x01+0x00+ .... + 0x12+0xC0
Serial1.write((byte)0xB0); // End Sequence
Serial1.write((byte)0xB3);
}
view raw sketch_DUE_GPS648_raw.ino hosted with ❤ by GitHub
// Arduino DUE and the PMB 648
// Copyright (C) 2021 https://www.roboticboat.uk
// 76ab2f9e-0397-4f06-9fd7-3671de41d34c
//
// This program is free software: you can redistribute it and/or modify
// it under the terms of the GNU General Public License as published by
// the Free Software Foundation, either version 3 of the License, or
// (at your option) any later version.
//
// This program is distributed in the hope that it will be useful,
// but WITHOUT ANY WARRANTY; without even the implied warranty of
// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
// GNU General Public License for more details.
//
// You should have received a copy of the GNU General Public License
// along with this program. If not, see <https://www.gnu.org/licenses/>.
// These Terms shall be governed and construed in accordance with the laws of
// England and Wales, without regard to its conflict of law provisions.
float gpstime;
float gpsdate;
float latitude;
float longitude;
float altitude;
float gpsknots;
float gpstrack;
char latNS, lonEW;
char gpsstatus;
int fixquality;
int numsatelites;
volatile int ptr = 0;
volatile bool flag = true;
volatile char redbuffer[120];
volatile char blubuffer[120];
void setup()
{
// Keep the User informed
Serial.begin(9600);
Serial.println("Initializing GPS");
Serial1.begin(4800);
// Set the GPS in walk mode
SetGPSWalkMode();
}
void loop()
{
Serial.print("GPS,");
Serial.print(gpsdate, 0);
Serial.print(",");
Serial.print(gpstime, 0);
Serial.print(",");
Serial.print(latitude, 8);
Serial.print(",");
Serial.print(latNS);
Serial.print(",");
Serial.print(longitude, 8);
Serial.print(",");
Serial.print(lonEW);
Serial.print(",");
Serial.print(altitude);
Serial.print(",");
Serial.print(fixquality);
Serial.print(",");
Serial.print(numsatelites);
Serial.print(",");
Serial.print(gpsknots);
Serial.print(",");
Serial.print(gpstrack);
Serial.print(",");
Serial.println(gpsstatus);
}
void serialEvent1()
{
listen();
}
void listen(){
while (Serial1.available())
{
read(Serial1.read());
}
}
void read(char nextChar){
// Start of a GPS message
if (nextChar == '$') {
flag ? redbuffer[ptr] = '\0' : blubuffer[ptr] = '\0';
ptr = 0;
}
// End of a GPS message
if (nextChar == '\n') {
if (flag) {
flag = false;
// Set termination character of the current buffer
redbuffer[ptr] = '\0';
// Process the message if the checksum is correct
if (CheckSum((char*) redbuffer )) {parseString((char*) redbuffer );}
}
else
{
flag = true;
// Set termination character of the current buffer
blubuffer[ptr] = '\0';
// Process the message if the checksum is correct
if (CheckSum((char*) blubuffer )) {parseString((char*) blubuffer );}
}
// Reset the pointer
ptr = 0;
}
// Add a new character
flag ? redbuffer[ptr] = nextChar : blubuffer[ptr] = nextChar;
// Check we stay within allocated memory
if (ptr < 119) ptr++;
}
bool CheckSum(char* msg) {
// Check the checksum
//$GPGGA,.........................0000*6A
// Length of the GPS message
int len = strlen(msg);
// Does it contain the checksum, to check
if (len>3 && msg[len-4] == '*') {
// Read the checksum from the message
int cksum = 16 * Hex2Dec(msg[len-3]) + Hex2Dec(msg[len-2]);
// Loop over message characters
for (int i=1; i < len-4; i++) {
cksum ^= msg[i];
}
// The final result should be zero
if (cksum == 0){
return true;
}
}
return false;
}
float DegreeToDecimal(float num, byte sign)
{
// Want to convert DDMM.MMMM to a decimal number DD.DDDDD
int intpart= (int) num;
float decpart = num - intpart;
int degree = (int)(intpart / 100);
int mins = (int)(intpart % 100);
if (sign == 'N' || sign == 'E')
{
// Return positive degree
return (degree + (mins + decpart)/60);
}
// Return negative degree
return -(degree + (mins + decpart)/60);
}
void parseString(char* msg) {
messageGGA(msg);
messageRMC(msg);
}
void messageGGA(char* msg)
{
// Ensure the checksum is correct before doing this
// Replace all the commas by end-of-string character '\0'
// Read the first string
// Knowing the length of the first string, can jump over to the next string
// Repeat the process for all the known fields.
// Do we have a GGA message?
if (!strstr(msg, "GGA")) return;
// Length of the GPS message
int len = strlen(msg);
// Replace all the commas with end character '\0'
for (int j=0; j<len; j++){
if (msg[j] == ',' || msg[j] == '*'){
msg[j] = '\0';
}
}
// Allocate working variables
int i = 0;
//$GPGGA
// GMT time 094728.000
i += strlen(&msg[i])+1;
gpstime = atof(&msg[i]);
// Latitude
i += strlen(&msg[i])+1;
latitude = atof(&msg[i]);
// North or South (single char)
i += strlen(&msg[i])+1;
latNS = msg[i];
if (latNS == '\0') latNS = '.';
// Longitude
i += strlen(&msg[i])+1;
longitude = atof(&msg[i]);
// East or West (single char)
i += strlen(&msg[i])+1;
lonEW = msg[i];
if (lonEW == '\0') lonEW = '.';
// Fix quality (1=GPS)(2=DGPS)
i += strlen(&msg[i])+1;
fixquality = atof(&msg[i]);
// Number of satellites being tracked
i += strlen(&msg[i])+1;
numsatelites = atoi(&msg[i]);
// Horizontal dilution of position
i += strlen(&msg[i])+1;
// Altitude
i += strlen(&msg[i])+1;
altitude = atof(&msg[i]);
// Height of geoid (mean sea level)
i += strlen(&msg[i])+1;
// Time in seconds since last DGPS update
i += strlen(&msg[i])+1;
// DGPS station ID number
i += strlen(&msg[i])+1;
// Convert from degrees and minutes to degrees in decimals
latitude = DegreeToDecimal(latitude, latNS);
longitude = DegreeToDecimal(longitude, lonEW);
}
void messageRMC(char* msg)
{
// Ensure the checksum is correct before doing this
// Replace all the commas by end-of-string character '\0'
// Read the first string
// Knowing the length of the first string, can jump over to the next string
// Repeat the process for all the known fields.
// Do we have a RMC message?
if (!strstr(msg, "RMC")) return;
// Length of the GPS message
int len = strlen(msg);
// Replace all the commas with end character '\0'
for (int j=0; j<len; j++){
if (msg[j] == ',' || msg[j] == '*'){
msg[j] = '\0';
}
}
// Allocate working variables
int i = 0;
//$GPRMC
// GMT time 094728.000
i += strlen(&msg[i])+1;
gpstime = atof(&msg[i]);
// Status A=active or V=Void.
i += strlen(&msg[i])+1;
gpsstatus = msg[i];
// Latitude
i += strlen(&msg[i])+1;
latitude = atof(&msg[i]);
// North or South (single char)
i += strlen(&msg[i])+1;
latNS = msg[i];
if (latNS == '\0') latNS = '.';
// Longitude
i += strlen(&msg[i])+1;
longitude = atof(&msg[i]);
// East or West (single char)
i += strlen(&msg[i])+1;
lonEW = msg[i];
if (lonEW == '\0') lonEW = '.';
// // Speed over the ground in knots
i += strlen(&msg[i])+1;
gpsknots = atof(&msg[i]);
// Track angle in degrees True North
i += strlen(&msg[i])+1;
gpstrack = atof(&msg[i]);
// Date - 31st of March 2018
i += strlen(&msg[i])+1;
gpsdate = atof(&msg[i]);
// Magnetic Variation
// Convert from degrees and minutes to degrees in decimals
latitude = DegreeToDecimal(latitude, latNS);
longitude = DegreeToDecimal(longitude, lonEW);
}
// Convert HEX to DEC
int Hex2Dec(char c) {
if (c >= '0' && c <= '9') {
return c - '0';
}
else if (c >= 'A' && c <= 'F') {
return (c - 'A') + 10;
}
else {
return 0;
}
}
void NMEA2Binary()
{
// Switch to Binary communication mode with the GPS Module
// Sets it to SiRF Binary Mode
Serial1.println("$PSRF100,0,4800,8,1,0*0F");
// Wait for the GPS to think
delay(2000);
}
void Binary2NMEA()
{
// Start Sequence
Serial1.write(0xA0);
Serial1.write(0xA2);
Serial1.write((byte)0x00); // Payload length
Serial1.write(0x02); // dec2hex(2 bytes)=0x02
Serial1.write(0x87); // Message ID 135
Serial1.write(0x02); // NMEA = 2
// Message Checksum
Serial1.write((byte)0x00);
Serial1.write(0x89); // 0x8F+0x02 (the payload)
// End Sequence
Serial1.write(0xB0);
Serial1.write(0xB3);
}
void SetGPSWalkMode()
{
//The GPS is by default set up as Static Navigation
//which means the lat/lon will not change unless moving say 50 meters
//The script below turns the GPS to pedestrian/walk mode but need to go via
//SiRF binary mode to set the parameters. The GPS will of course must have
//the SiRF chipset.
// Switch from NMEA to SiRF binary - REQUIRES THE SiRF chip!
// $PSRF100 - Message ID
// 0 = SiRF binary (1=NMEA)
// Band = 4800
// DataBits = 8
// StopBits = 1
// Parity = 0
// Checksum *0C
NMEA2Binary();
// Static Navigation (Message ID 143) ------------------
// Allows the user to enable or disable static navigation to the receiver
// Static model is meant to be used in cars and thus can be turned off
Serial1.write(0xA0); // Start Sequence
Serial1.write(0xA2);
Serial1.write((byte)0x00); // Payload length
Serial1.write(0x02); // dec2hex(2 bytes)=0x02
Serial1.write(0x8F); // 1 Message ID = 143
Serial1.write((byte)0x00); // 2 Disable = 0 (Enable = 1)
Serial1.write((byte)0x00); // Message Checksum
Serial1.write(0x8F); // 0x8F+0x00 (the payload)
Serial1.write(0xB0); // End Sequence
Serial1.write(0xB3);
delay(1000);
Binary2NMEA();
}
void SelectSentences()
{
NMEA2Binary();
// Switch to NMEA Protocol (Message ID 129) ------------
Serial1.write((byte)0xA0); // Start Sequence
Serial1.write((byte)0xA2);
Serial1.write((byte)0x00); // Payload length
Serial1.write((byte)0x18); // dec2hex(24 bytes)=0x18
delay(100);
Serial1.write((byte)0x81); // byte 1 Message ID = 129
Serial1.write((byte)0x02); // byte 2 Mode
Serial1.write((byte)0x01); // byte 3 GGA message (ON) 1 second
Serial1.write((byte)0x01); // byte 4 Checksum
Serial1.write((byte)0x00); // byte 5 GLL message (OFF) 0 second
Serial1.write((byte)0x01); // byte 6 Checksum
Serial1.write((byte)0x00); // byte 7 GSA message (OFF) 0 second
Serial1.write((byte)0x01); // byte 8 Checksum
Serial1.write((byte)0x00); // byte 9 GSV message (OFF) 0 second
Serial1.write((byte)0x01); // byte 10 Checksum
Serial1.write((byte)0x01); // byte 11 RMC message (ON) 1 second
Serial1.write((byte)0x01); // byte 12 Checksum
delay(100);
Serial1.write((byte)0x00); // byte 13 VTG message (OFF) 0 second
Serial1.write((byte)0x01); // byte 14 Checksum
Serial1.write((byte)0x00); // byte 15 MSS message (OFF) 0 second
Serial1.write((byte)0x01); // byte 16 Checksum
Serial1.write((byte)0x00); // byte 17 EPE message
Serial1.write((byte)0x01); // byte 18 Checksum
Serial1.write((byte)0x00); // byte 19 ZDA message
Serial1.write((byte)0x01); // byte 20 Checksum
Serial1.write((byte)0x00); // byte 21 Unused field
Serial1.write((byte)0x01); // byte 22 Unused field
Serial1.write((byte)0x12); // byte 23 Bit rate dec2hex(4800)=12C0
Serial1.write((byte)0xC0); // byte 24
delay(100);
Serial1.write((byte)0x01); // Message Checksum
Serial1.write((byte)0x61); // 0x81+0x02+0x01+0x01+0x00+ .... + 0x12+0xC0
Serial1.write((byte)0xB0); // End Sequence
Serial1.write((byte)0xB3);
//Returns in NMEA format, so no need to request Binary2NMEA
}
void AllSentences()
{
NMEA2Binary();
// Switch to NMEA Protocol (Message ID 129) ------------
Serial1.write((byte)0xA0); // Start Sequence
Serial1.write((byte)0xA2);
Serial1.write((byte)0x00); // Payload length
Serial1.write((byte)0x18); // dec2hex(24 bytes)=0x18
delay(100);
Serial1.write((byte)0x81); // byte 1 Message ID = 129
Serial1.write((byte)0x02); // byte 2 Mode
Serial1.write((byte)0x01); // byte 3 GGA message (ON) 1 second
Serial1.write((byte)0x01); // byte 4 Checksum
Serial1.write((byte)0x01); // byte 5 GLL message (ON) 1 second
Serial1.write((byte)0x01); // byte 6 Checksum
Serial1.write((byte)0x01); // byte 7 GSA message (ON) 1 second
Serial1.write((byte)0x01); // byte 8 Checksum
Serial1.write((byte)0x05); // byte 9 GSV message (ON) 5 seconds
Serial1.write((byte)0x01); // byte 10 Checksum
Serial1.write((byte)0x01); // byte 11 RMC message (ON) 1 second
Serial1.write((byte)0x01); // byte 12 Checksum
delay(100);
Serial1.write((byte)0x00); // byte 13 VTG message (OFF) 0 second
Serial1.write((byte)0x01); // byte 14 Checksum
Serial1.write((byte)0x00); // byte 15 MSS message (OFF) 0 second
Serial1.write((byte)0x01); // byte 16 Checksum
Serial1.write((byte)0x00); // byte 17 EPE message
Serial1.write((byte)0x01); // byte 18 Checksum
Serial1.write((byte)0x00); // byte 19 ZDA message
Serial1.write((byte)0x01); // byte 20 Checksum
Serial1.write((byte)0x00); // byte 21 Unused field
Serial1.write((byte)0x01); // byte 22 Unused field
Serial1.write((byte)0x12); // byte 23 Bit rate dec2hex(4800)=12C0
Serial1.write((byte)0xC0); // byte 24
delay(100);
Serial1.write((byte)0x01); // Message Checksum
Serial1.write((byte)0x68); // 0x81+0x02+0x01+0x01+0x00+ .... + 0x12+0xC0
Serial1.write((byte)0xB0); // End Sequence
Serial1.write((byte)0xB3);
//Returns in NMEA format, so no need to request Binary2NMEA
}
view raw sketch_DUE_GPS648.ino hosted with ❤ by GitHub
RoboticBoat.uk
